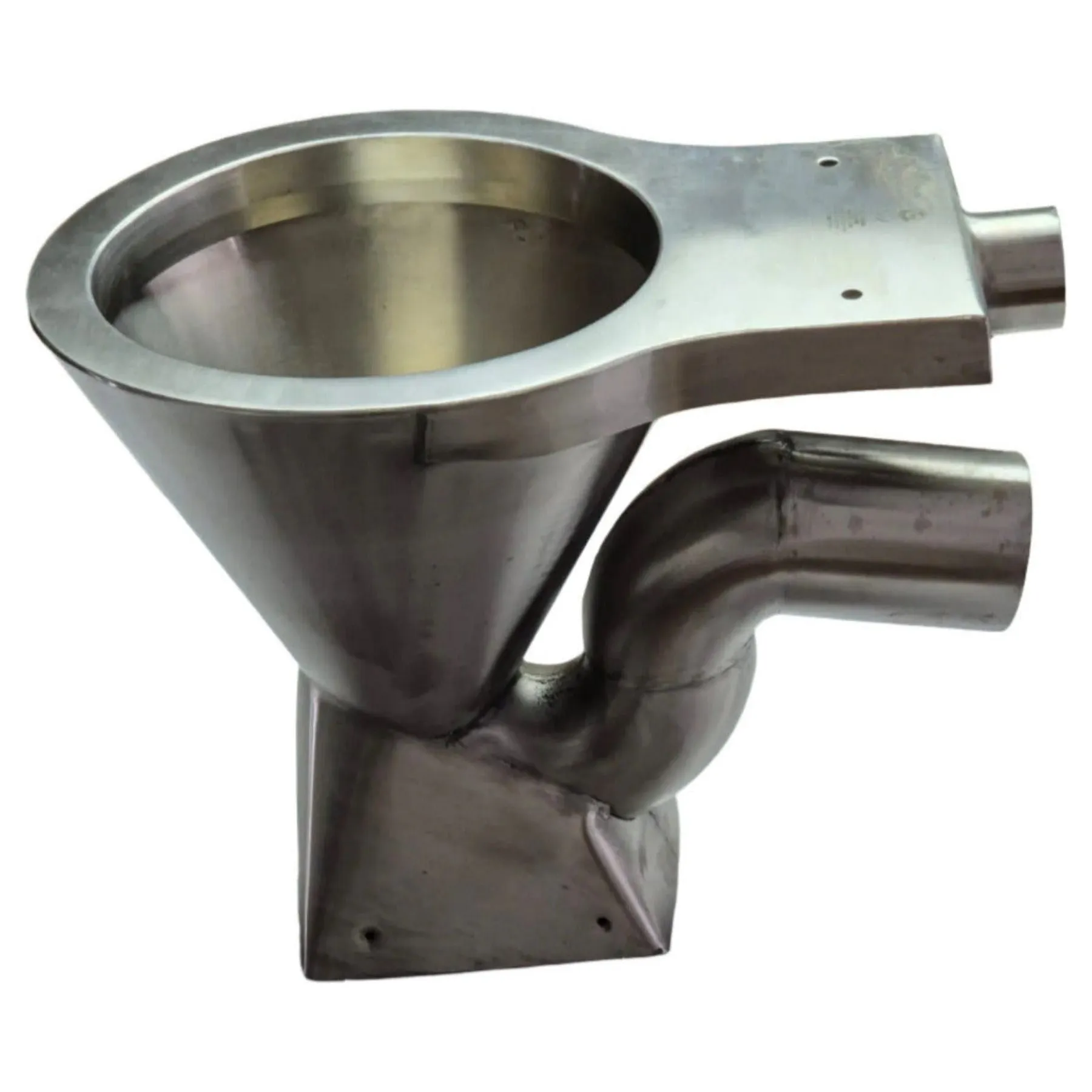

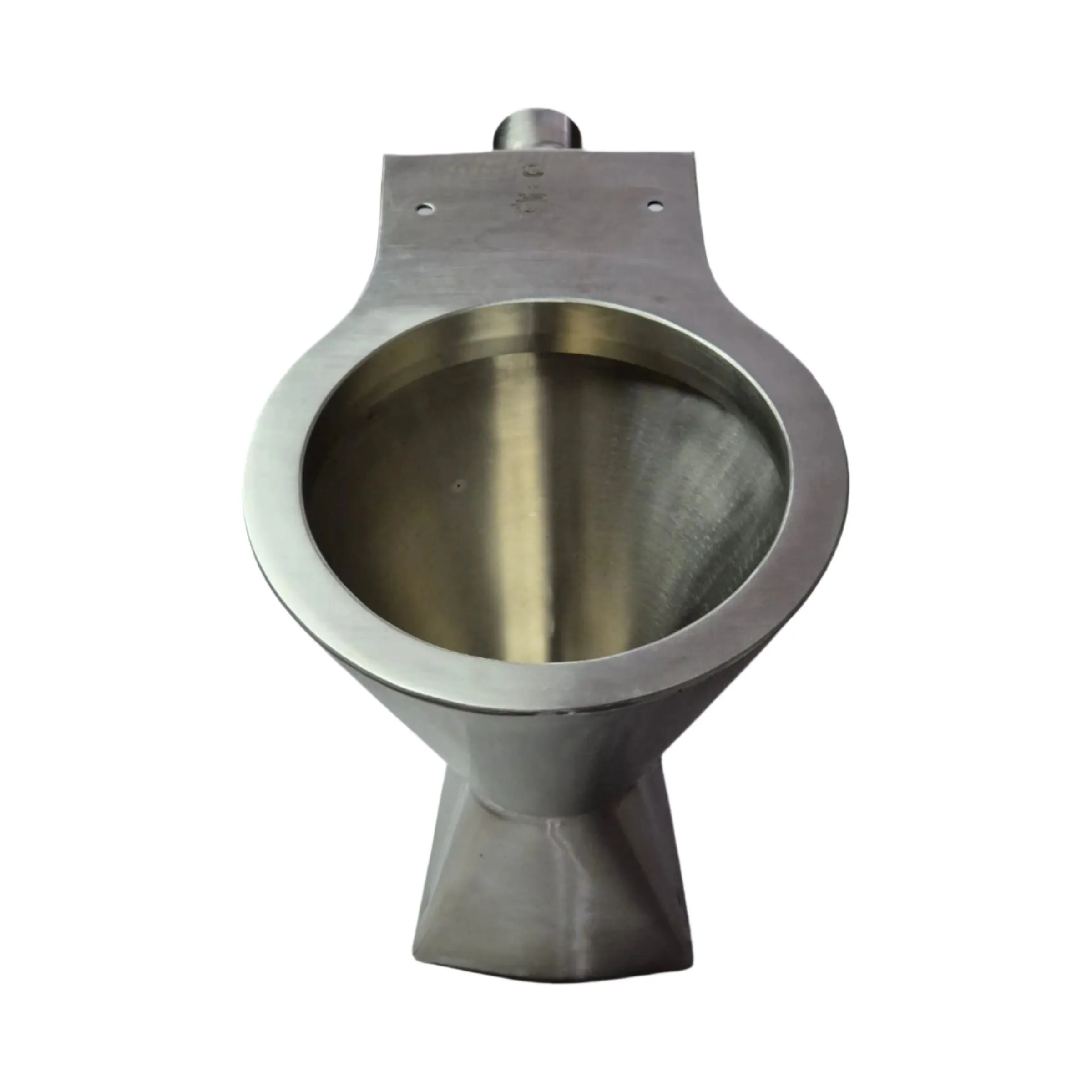

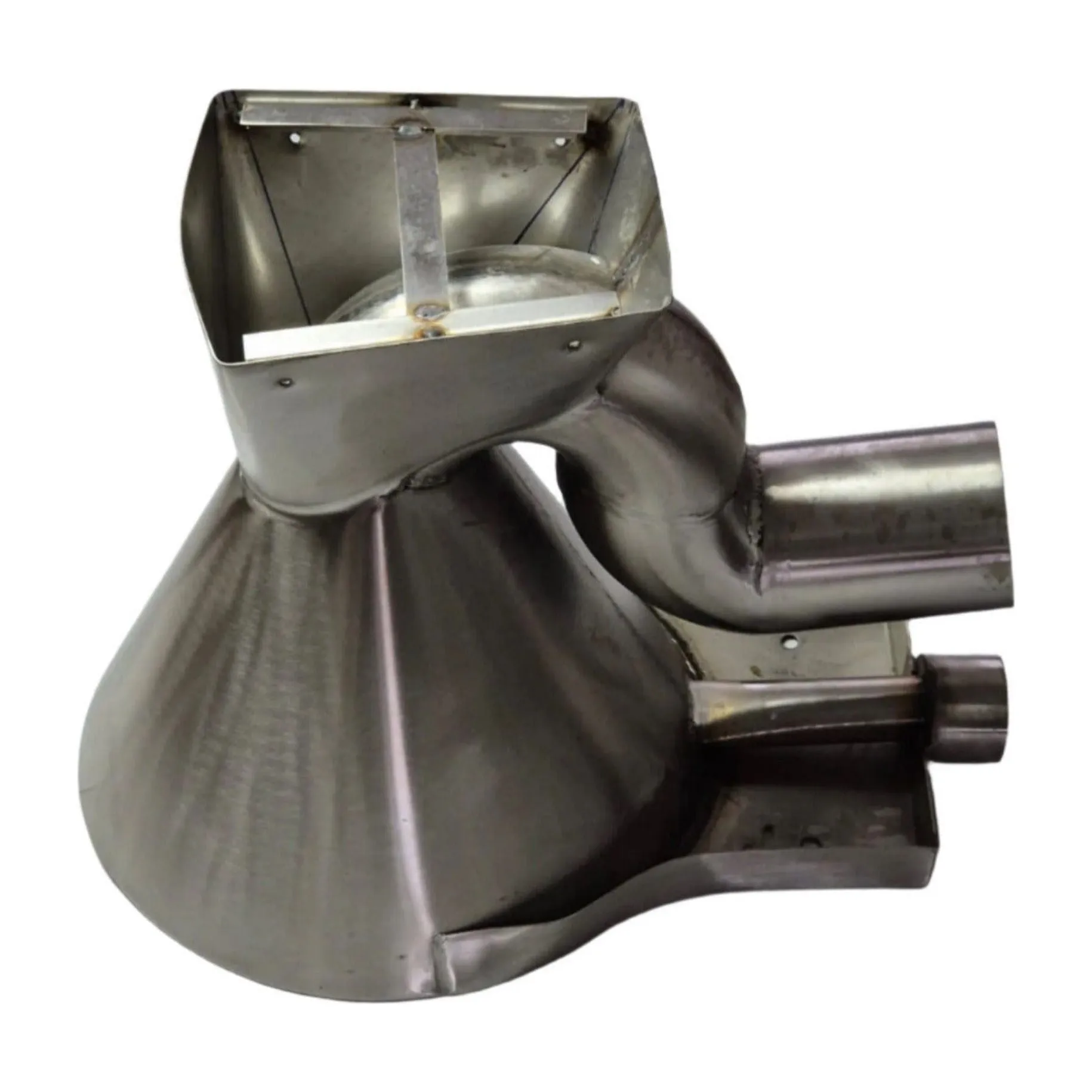

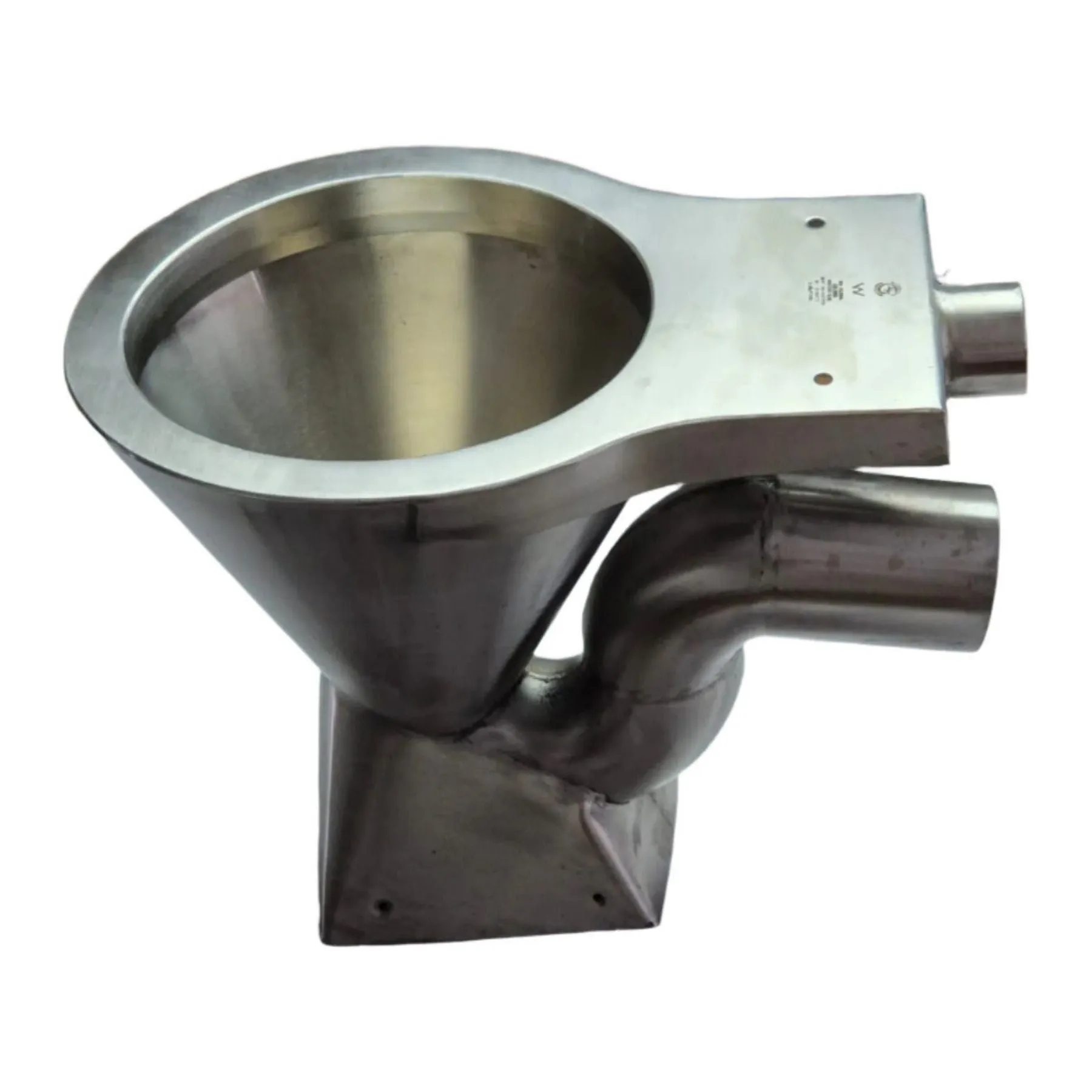

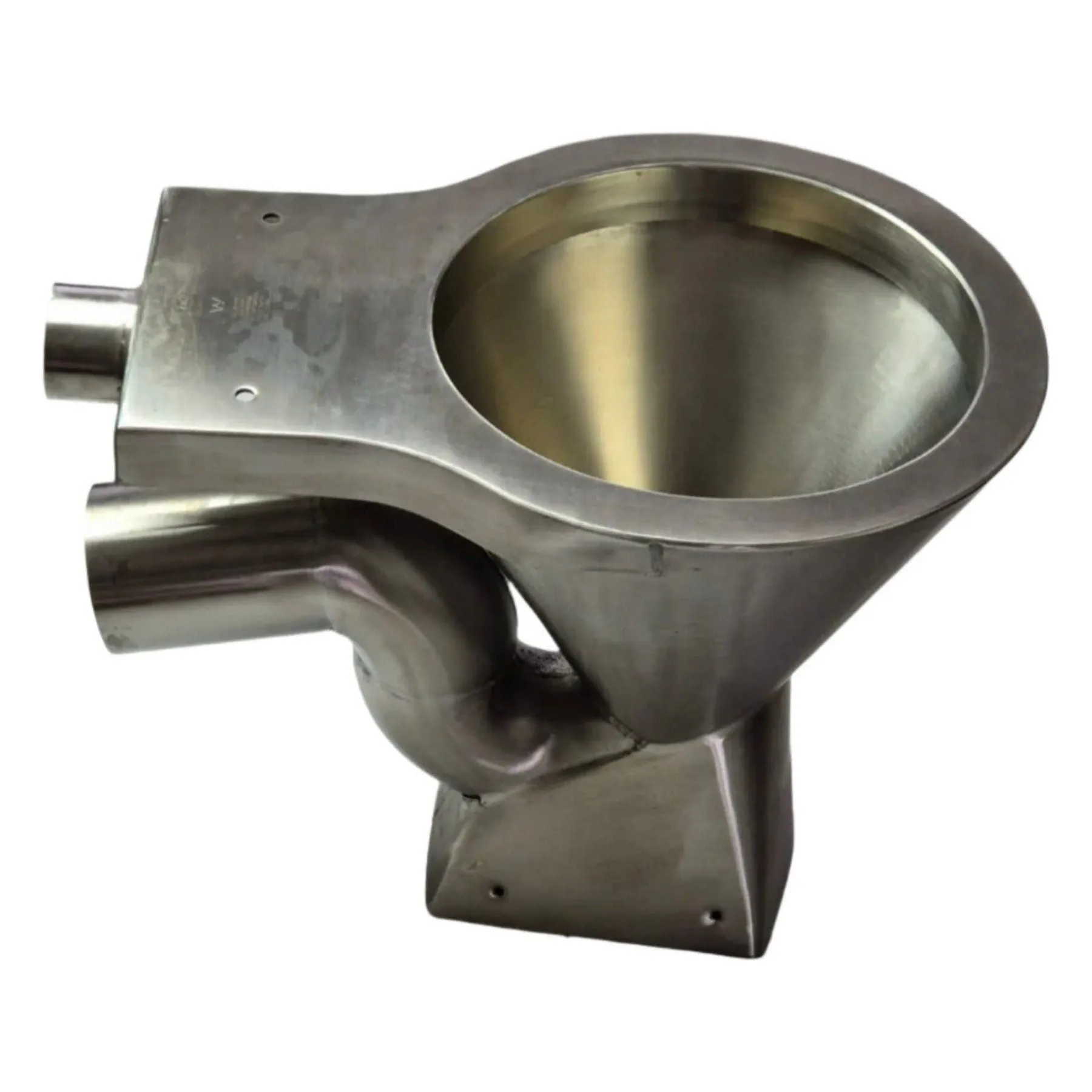

Product Description: 304 Stainless Steel Pedestal P Trap Toilet

This premium 304 stainless steel pedestal P Trap toilet combines durability, functionality, and modern aesthetics, making it a versatile choice for both commercial and residential applications. Designed for easy retrofitting and simple installation, it provides a seamless upgrade to your restroom.

Key Features:

• Easy to Retrofit: Designed for hassle-free replacement or installation.
• Simple Installation: Quick and straightforward setup for convenience.
• Radius Edges: Smooth, rounded edges enhance safety and sleekness.
• Satin Finish: Stylish and easy-to-clean finish for a modern look.
• Durable Build: Made from 1.5mm to 3mm 304-grade stainless steel, ensuring strength and resistance to wear, customized by location strength requirements.
• In Stock: Available for immediate delivery.

Technical Specifications:

• Seat Location Holes: 11.5mm diameter, 150mm apart (center-to-center).
• Height: 400mm from floor to top.
• Length: 530mm from the widest point, front to back.
• Bowl Width: 344mm at the widest point (left to right).
• Base Footprint: 230mm x 175mm (front to back, left to right).

This toilet is perfect for environments demanding durability, ease of maintenance, and timeless design. Ideal for public restrooms, industrial facilities, or private use, it provides a robust solution without compromising style.

PEDESTAL PAN
INSTALLATION INSTRUCTIONS

All pans are tested to AS 1172.1 in our factory prior to dispatch.

The pan must be connected to the cistern with a flush pipe of the following dimensions:

• Recommended diameter — 40mm
• Minimum height — 450mm
• Maximum length — 180mm

Preparation and Pan Bedding:
Remove an area of tiles which is within the area covered by the foot of the pan so the subfloor is exposed. Ensure bedding area is clean and free of building materials and loose debris.

Prepare bedding mixture of sand and cement (3:1) to a depth of 60mm where the pan foot will sit.

Please note: Fast-drying cement or adding lime to cement is not recommended, as these may cause cracking in the foot of the pan.

Positioning:
Position the pan and connect with the pan connector so that the bottom of the pan sits 10mm above the floor level. Level the top of the pan with a spirit level. It is recommended that wedges are used to support the foot of the pan during installation.

Clean around the pan area with a trowel, then clean with a cloth. Allow the setup to cure for a minimum of 24 hours before use.

Note: These instructions are recommendations only. All care has been taken, but no responsibility will be accepted as S.C.S.S. are not licensed plumbers. Refer to the Plumbing Code AS/NZS3500.
