Name: Clinician's Choice® DualForce™ Molar & Pre-Molar Rings
SKU: 204083

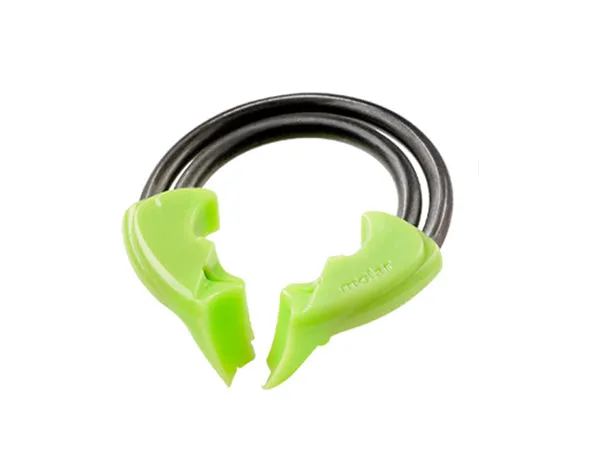

Clinician's Choice® DualForce™ Molar & Pre-Molar Rings are engineered using unique, dual Nickel Titanium wires and independent interproximal separators, DualForce provides significant and balanced separation force (mesial/distal) and an excellent matrix/tooth seal. Using Nickel Titanium wire renders the DualForce Rings resistant to fatigue so you will have consistent separation force throughout the life of the ring.

Other features and benefits include:

DualForce Rings engage the tooth more firmly and are very stable.
Less hand strain is required to open the rings, yet separation force on the teeth is stronger.
20° angle placement of Ring increases separation force and prevents cusp and rubber dam clamp interference.
Interproximal separators are made with non-stick, durable plastic – preventing composite and adhesive stick, and breakage.
Ideal for stacking or butterfly placement techniques.

Clinical Technique

With rubber dam in place (), pre-op view of wide Class II on first molar requiring replacement.
in place extending well beyond the proximal line angles. Ultra-Wrap is made from .0015" semi-hard stainless steel making it more resistant to crimping during placement.
The tip collapses during insertion for easy placement, then re-expands when fully seated, regaining full contour for an improved matrix band seal.
Once seated, the provides a complete gingival seal with a tight vertical seal of the matrix band along with a strong and stable separation force, resulting in less chance of composite flash.
First increment of adapted to include Ultra-Wrap's pre-contoured occlusal lip, establishing an ideal rolling marginal ridge.
Evanesce composite adapts to the internal surfaces of the preparation with excellent packability.
Evanesce is easily sculpted with no slumping, efficiently and effectively establishing the ideal occlusal anatomy before the final curing.
The gently diminishes small surface defects without affecting anatomy.
Pre-polishing completed.
After just 10-15 seconds of polishing with the , the final esthetic restoration with an optimal proximal contact.

Dentistry and photography courtesy of Dr. Parag R. Kachalia.

Deep Class II pre-molar preparation.
pinch and grip the matrix's occlusal tab allowing for easy placement of the .
The tip collapses during insertion for easy placement, then re-expands when fully seated, regaining full contour for an improved matrix band seal.
DualForce Rings are easy to expand, yet provide more separation force once placed. DualForce Rings adapt intimately in the embrasure area.
Once seated, provides a complete gingival seal with a tight vertical seal of the matrix band along with a strong and stable separation force, resulting in less chance of composite flash.
, and provide outstanding bond strength and dentin/enamel seal. is incrementally placed into the preparation.
Evanesce composite adapts to the internal surfaces of the preparation with excellent packability using the .
Once the restoration is fully cured, may be used anywhere along the matrix band to perforate it for a secure grip and easy removal. Lack of flash and overhangs greatly reduce finishing time.
Diamond impregnated (10-15 seconds) and (10-15 seconds) quickly result in a beautiful luster.
Final esthetic restoration that mimics natural form and function.

Dentistry and Photography Courtesy of Dr. Robert Margeas.

Technical Details

Video

DualForce Rings from Clinician's Choice feature unique dual nickel titanium wires and independent interproximal separators, providing significant and balanced separation force and an excellent matrix/tooth seal.

Dr. Geissberger demonstrates how to place the DualForce Ring.

Testimonials

Configurations

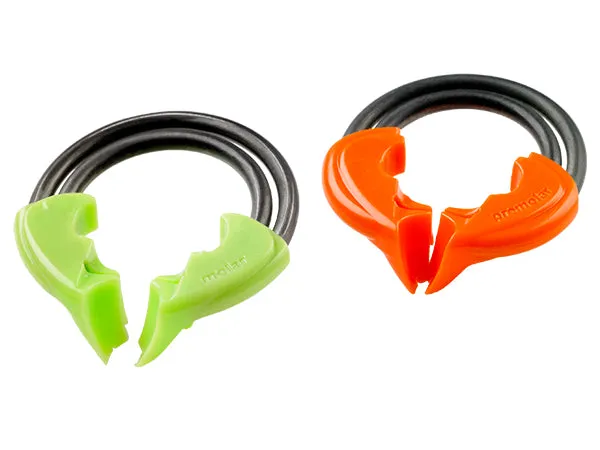

DualForce Assorted Ring Set (Item Number: 209006): 1 pre-molar and 1 molar ring.

DualForce Pre-Molar Rings Orange (209007): 2-pack.

DualForce Molar Rings Green (209008): 2-pack.

FAQ

Q: How do I prevent the DualForce ring from popping off the tooth?

A: Ensure that the DualForce Ring is fully seated by gently pressing down on the plastic separating prongs (never directly on the dual NiTi rings) once it is placed on the tooth.

Q: How do I prevent the plastic on the rings from breaking?

A: Ensure that the proper sterilization temperature and method are being used. It is recommended to use a steam autoclave at 273°F (134°C) only. Ensure that the ring is expanded sufficiently to avoid premature contact of the separating prongs with the tooth as it is being seated.

Q: Are there any tips for placement?

Approach the tooth with the expanded ring at a 45° angle.
Place the separating prongs as close as possible to the gingival crest and gently press down on the plastic to ensure that it is fully seated. The dual NiTi rings themselves should never be manipulated as this will cause the separating prongs to shift.
DualForce Rings are designed to sit at a 20° angle to allow for nesting of a second ring, to avoid a rubber dam clamp, and to clear an adjacent prominent cusp.

Resources

View the

View Ask the Expert:

View the clinical product application in the article by Marcos Vargas, BDB, DDS, MS and Kayla E. Erps, Senior Dental Student at the University of Iowa.

View article by Dr. Parag R. Kachalia in Inside Dentistry.

View the Product Spotlight.
